Injectoare Valvă LUBE Company

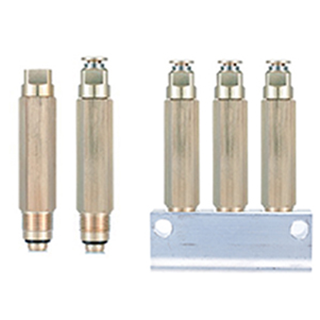

Supapă injector cu deplasare pozitivă MO2/MO2C
Model
| Model | Part Number | Discharge volume（mℓ） | L (mm) | Mark | |
|---|---|---|---|---|---|
| MO2-3 | 205761 | 0.03 | 48 | 3 | HEX12 |
| MO2-5 | 205762 | 0.05 | 5 | ||
| MO2-10 | 205763 | 0.1 | 10 | ||
| MO2-20 | 205764 | 0.2 | 64 | 20 | |
| MO2-30 | 205765 | 0.3 | 30 | ||
| MO2-50 | 205766 | 0.5 | 50 | ||
| MO2C-3 | 205751 | 0.03 | 53.5 | 3 | |
| MO2C-5 | 205752 | 0.05 | 5 | ||
| MO2C-10 | 205753 | 0.1 | 10 | ||
| MO2C-20 | 205754 | 0.2 | 69.5 | 20 | |
| MO2C-30 | 205755 | 0.3 | 30 | ||
| MO2C-50 | 205756 | 0.5 | 50 |
Specificații
| Discharge Volume | 0.03、0.05、0.1、0.2、0.3、0.5、mℓ/stroke |
| Operating Pressure | 1.0MPa |
| Reset Pressure | 0.3MPa |
